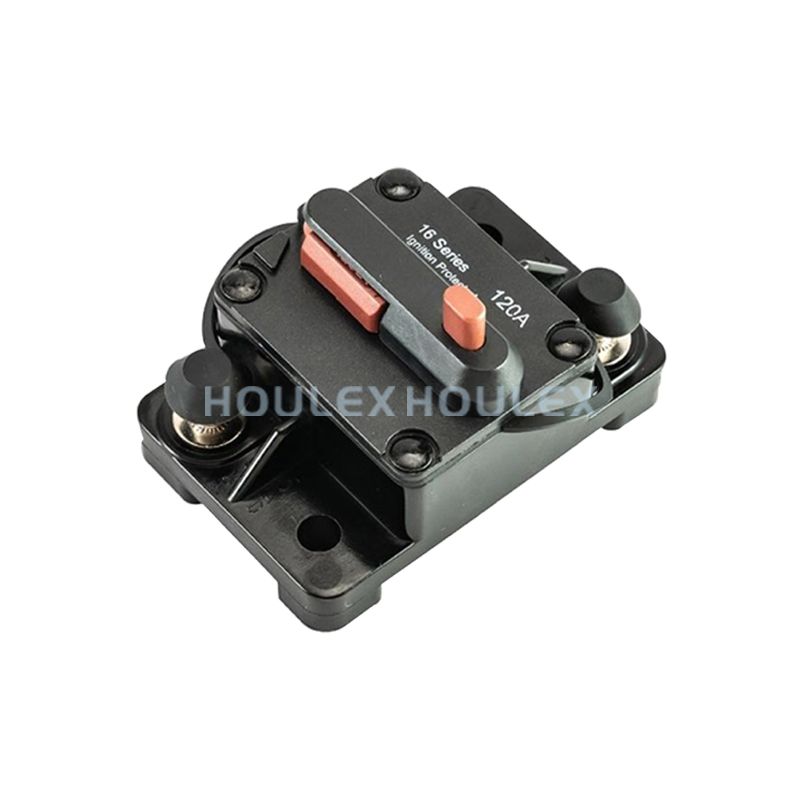

產品名稱: 16-8F

產品型號: 25A-300A

額定電流(Current rating range)：25A-300A

額定電壓(Input voltage rating )：12/24/32/48VDC

限制短路電流(Interrupting capacity): 2000A/32VDC Type I

2000A/14VDC Type II

1500A/48VDC Type III

介電強度(Dielectric Strength):>1500VAC/min

絕緣電阻(Insulation Resistance):>100MOHM(DC 500V)

防護等級(Degree of protection):IP66

復位時間(Reset-Time):<60sec

工作環境溫度（Operating Temperature Rating):-30℃-80℃

儲存溫度(Storage Temperatur Rating):-30℃-140℃
