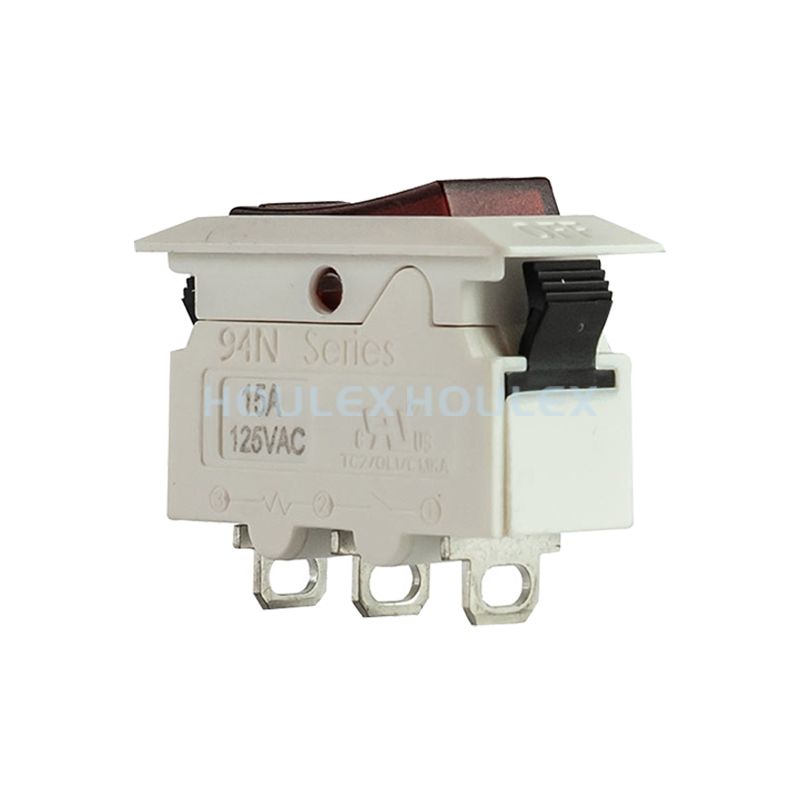

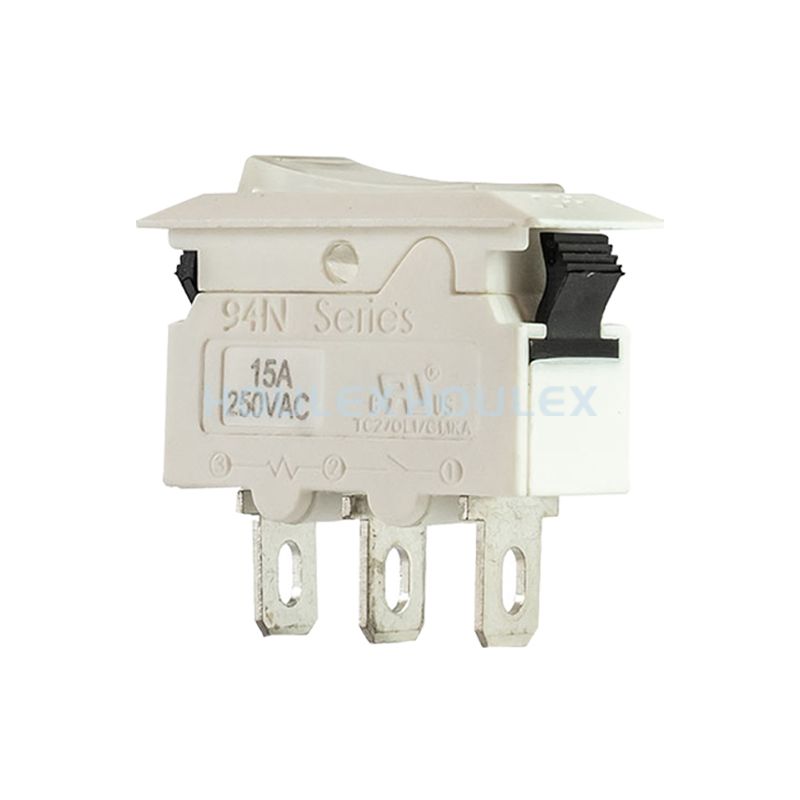

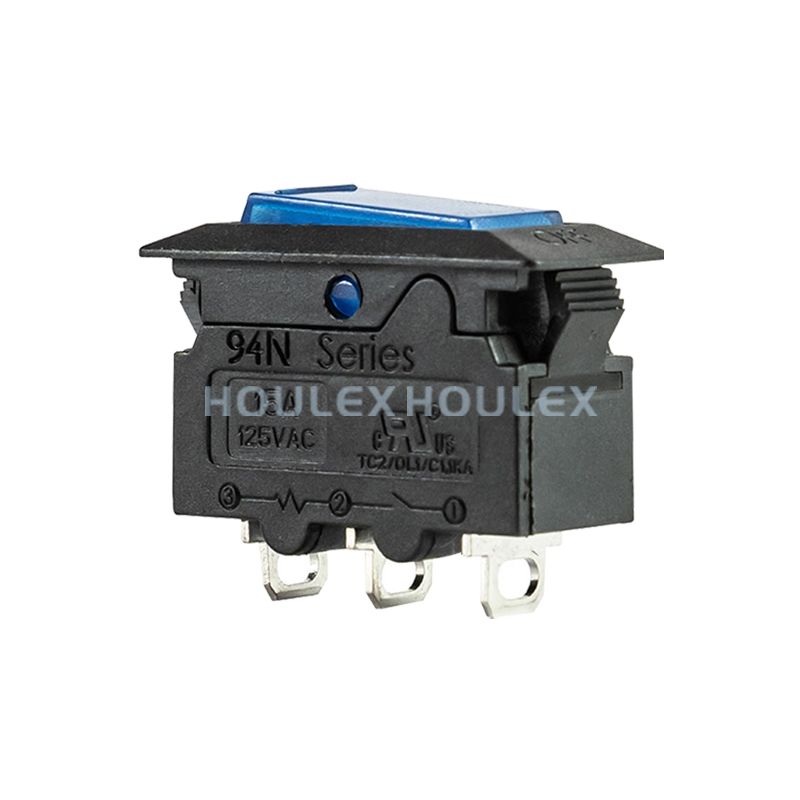

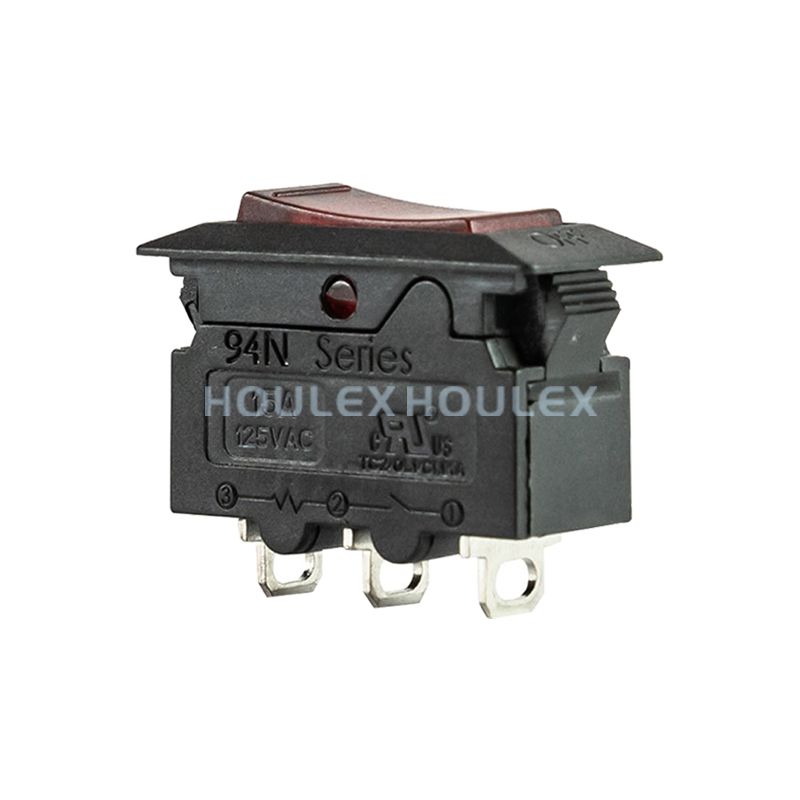

94N-series


94N-series
額定電流(rating):3A-16A
輸入電壓(Input Power):125VAC/250VAC/50VDC 50-60Hz
耐電壓強度(Withstand voltage strength):1500VAC/1min,漏電電流≤0.5mA
(1500VAC/min,the leaked current is less than≤0.5mA)
絕緣電阻(Insulation Resistance):500VDC
1Min≥100MΩ
額定短路能力(Rated short-circuit capacity):125VAC/1000A,250VAC/1000A
額定通斷能力(Rated breaking capacity):6倍額定電流
(6 times rated current)
復位方式(Reset):手動復位(Manual Push
Reset)
